SKU: ATS-INSA-24-BAT-HTM
InstAlert 24 with Hitch Mount and Battery Power

For shipping outside of the United States, please call us at 888-925-1966 or email us at sales@ledlighting-solutions.com to receive a quote.

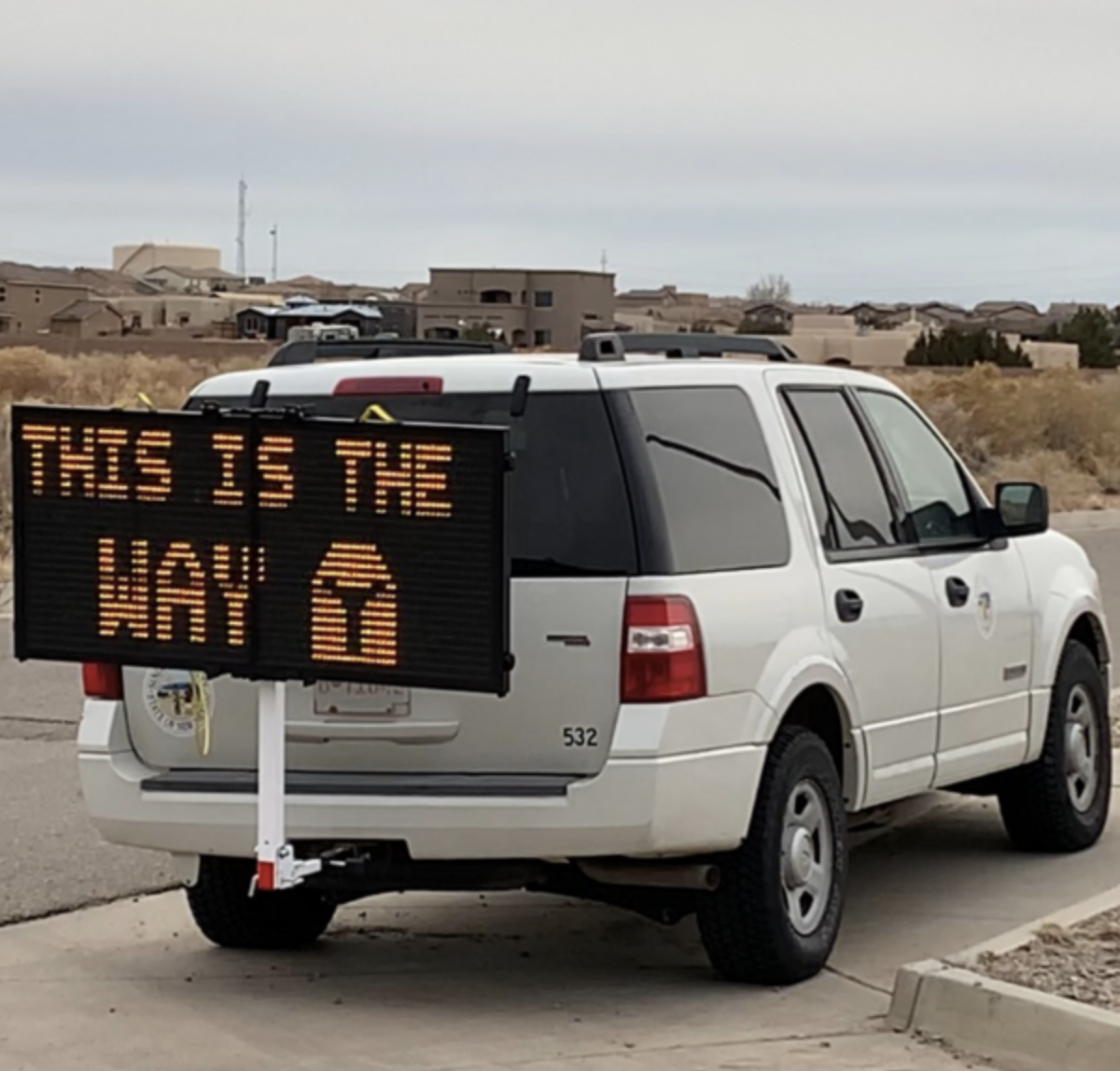

Introducing the ATS-INSA-24-BAT-HTM, a trailblazer in portable traffic messaging—the InstAlert 24 with Hitch Mount and Battery Power. Engineered for adaptability, this system seamlessly integrates with vehicle power ports or operates independently with a battery source. Versatility defines the InstAlert's operational modes, allowing you to display one message, sequence through all messages, or schedule changes up to 13 times a day. The dynamic message options offer flexibility for impactful communication. Whether displaying on-the-fly messages or adhering to pre-set schedules, the InstAlert empowers you with customizable features. The InstAlert 24 is a powerful tool for on-the-go traffic communication. Embrace a new era in portable traffic messaging with the ATS-INSA-24-BAT-HTM.

PRODUCT SPECIFICATIONS:

· TYPE: InstAlert 24 with Hitch Mount and Battery Power

· PRODUCT CODE: ATS-INSA-24-BAT-HTM

HITCH SPECIFICATIONS:

· Vehicles’ power port, with optional adapter

· Trailer wiring adapter for hitch mount

· Fits 1.25” or 2” receiver, adapter included

· 1⁄2” hitch pin

· Locking rotation adjustment on 15-degree increments over 180 degrees, +– 5-degree tilt to adjust LED aim for maximum brightness

· White powder coat finish with rear reflector

· Not intended for operation above 15 mph

· All features of standard hitch mount

SIGN SPECIFICATIONS:

InstAlert Operation Modes:

· Message Mode: Display one message, up to six screens

· All Messages: Sequence all messages in sign memory

· Schedule: Change message and/or mode up to 13 times/day

· Speed based modes available in the

· SpeedAlert 24 configuration

· Sign returns to last configuration when power applied

InstAlert Messages:

· 1–3 line messages

· 1 line: 24" H x 12.5" W characters, 4/line

· 2 lines: 10.25" H x 5.75" W characters, 8/line o 3 lines: 7" H x 4" W characters, 12 per line

· 2 lines: (1) 7" char, 12/line, (1) 10.25" char, 8/line

· Up to six screens per message

· Message power efficiency calculator in software Variable display time, flash and reverse rates for each screen

· Full graphics capability, each LED is individually controllable, programmable from PC, PDA o remotely

InstAlert Sign Power:

Power Input, Max: 12VDC, 8A max, 96 W max; 4A, 48W typical Power saving circuitry and automatic dimming for ambient light conditions with adjustable dimming range and manual display brightness override

InstAlert Settings:

· Configure the following parameters via PC, Android or TraffiCloud Web-Based Management System:

· Load message using “Display Now” feature

· load 24 messages into sign’s memory

· Scroll messages in sign’s memory

· Display signs from server or local device memory o

· Set sign mode

· Upload schedule

· Set automatic dimming range minimum and maximum levels or manually override display brightness

· Internal real time clock, time maintained with power disconnected

· Set time via local device or sync with cell signal
