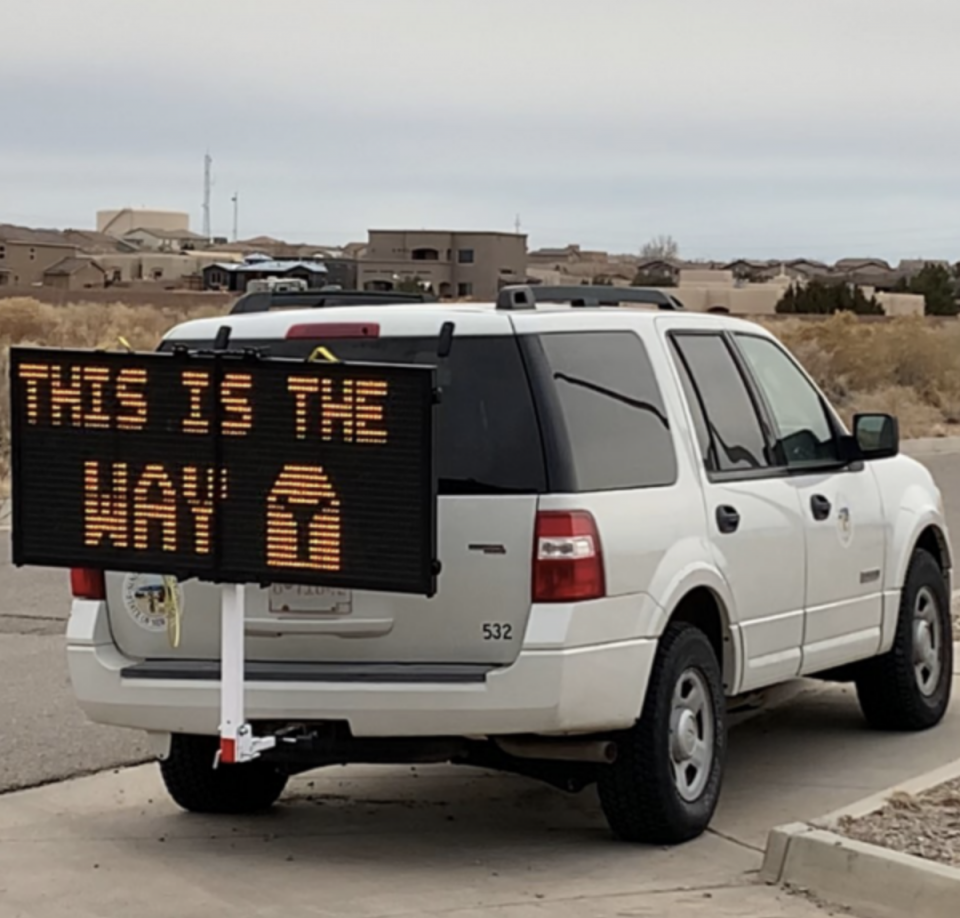

Introducing the ATS-SPDA-24-BAT-HTM, a game-changer in road safety—the Solar Powered SpeedAlert 24 with Hitch Mount and Battery Power. This innovative traffic management solution seamlessly combines a robust hitch system, with our versatile sign option and a host of operational modes for unparalleled performance. The hitch specifications boast adaptability, allowing you to power the device via the vehicle's power port or opt for a battery source, with a secure 1⁄2” hitch pin and a 180-degree locking rotation adjustment for precise positioning. The full matrix sign unfolds to reveal a powerful messaging system with customizable options, including Speed Alert messages and full graphics capability. Whether displaying one message, sequencing through all messages, or capturing approaching vehicle speed with the "YOUR SPEED" LED message, this versatile system ensures optimal visibility and control. With multiple programming methods, from on-board options to remote management via TraffiCloud, the ATS-SPDA-24-BAT-HTM empowers you to tailor messages, modes, and scheduling with ease. This radar speed display guarantees durability and reliability, setting a new standard for road safety technology.
PRODUCT SPECIFICATIONS:
· TYPE: Solar Powered SpeedAlert 24 with Hitch Mount and Battery Power
· PRODUCT CODE: ATS-SPDA-24-BAT-HTM
HITCH SPECIFICATIONS:
· Vehicles’ power port, with optional adapter
· Trailer wiring adapter for hitch mount
· Fits 1.25” or 2” receiver, adapter included
· 1⁄2” hitch pin
· Locking rotation adjustment on 15-degree increments over 180 degrees, +– 5-degree tilt to adjust LED aim for maximum brightness
· White powder coat finish with rear reflector
· Not intended for operation above 15 mph
· All features of standard hitch mount
SIGN SPECIFICATIONS:
· DIMENSIONS WITH BATTERY: 24′′ x 60′′ full matrix - Folds to fit in police cruiser trunk, SUV. 43lbs
· DIMENIONS WITHOUT BATTERY:
o Open: 28′′ x 60′′ x 15/8′′
o Folded Dimensions: 28′′ x 30′′ x 31⁄4′′
· UNIVERSAL MOUNTING SYSTEM: Attach to pole, trailer or vehicle hitch mount
· OPERATIONAL MODES:
o Message Mode: Display one message, up to six (6) screens
o All Messages: Sequence all messages in sign memory
o Speed Display: Display approaching vehicle’s speed with ′′YOUR SPEED′′ LED message
o Dependent Message: Display targeted messages based upon approaching vehicle’s speed
o Changeable speed limit sign
o Stealth or Display Off: Collect traffic speed and volume data with no display
o Schedule: Change message and/or mode up to 13 times/day
o Collect vehicle volume by speed and time data in all modes
o Sign returns to last configuration when power applied
· SPEED ALERT MESSAGES:
o SA24: 1-3 line messages
§ 1 line: 24′′ (H) x 12.5′′ (W) characters, four per line
§ 2 lines: 101⁄4′′ (H) x 5.75′′ (W) characters, eight (8) per line
§ 3 lines: 7′′ (H) x 4′′ (W) characters, 12 per line
§ 2 lines: (1) 7′′ char, 12/line, (1) 101⁄4′′ char, 8/line
o Up to six screens per message
o Full graphics capability, each LED individually controllable
o Variable display time, flash and reverse rates for each screen
o Scroll through 25 user defined onboard messages using selector buttons built into sign, no training necessary
o Ability to sequence messages for up to 144 screen animation
o Message power efficiency calculator in software
o Actual sign preview and unlimited message storage using TraffiCloudTM Web-based Remote Management Service, ATS PC Sign Manager or ATS Android app
o Messages on sign retained when power removed
o Sign returns to last message when power applied
· SPEED ALERT PROGRAMMING METHODS:
o On-Board Programming (standard on all units)
o Select Messages from signs memory
o Select operation mode and speed limit
o Buttons time out to prevent tampering
o TrafficCloud Web-based Remote Management Services using integral cell modem for remote management (see TraffiCloud specification for more information)
o Turnkey system: Remote connectivity functional upon ship. Unit connects to TraffiCloud Service when sign powered
o Fully hosted web-based management system
o Configure the following parameters via TraffiCloud Web-based Management system, ATS Android App or PC Sign Manager
o Messages:
o Create and load message using ′′Display Now′′
o Load 24 messages into sign’s memory
o Scroll messages in sign’s memory
o Speeds:
o Speed Limit
o Maximum speed displayed
o Display on/off/specific mph activation
o Radar sensitivity (range)
o Speed limit sign operation: Change speed limit up to 13 times per day schedule
· SCHEDULING:
o All Days, Multiple Messages: Schedule up to 50 different messages or modes for up to 13 different time periods in a 24 hour day, repeats in each 24 hour cycle
o Seven day, Multiple Messages: Schedule different messages or modes for up to 13 different time periods in each 24 hour day for each of seven days, repeats in each seven day cycle; up to 50 different messages can be used over the seven day period
· POWER: Power Input, Max: 12VDC, 8A max, 96 W max; 4A, 48W typical
· CONSTRUCTION:
o LED Pixels: Amber 595nm, 30 degree viewing angle, 100,000 hours, black background, (MUTCD compliant)
o LED Density: 0.6′′ x 1′′ pitch, 26 x 96 pixel matrix
o Radar: K Band (24.15 GHz), FCC Certified, no license required, +-1mph accuracy, 12 degree square pickup area, range: 2000+ ft., 5-150 mph (8-150 kph)
· WARRANTY: 3-year Manufacturer’s Warranty comes standard on all SpeedAlert radar speed displays
